Looking for a reliable SANY 62m pump truck for high-rise construction, bridges, infrastructure projects, or large-scale concrete placement?
A 62-meter truck-mounted concrete pump is designed for projects where conventional concrete pumps cannot provide sufficient reach. With a long-reach boom, high pumping capacity, and a heavy-duty truck chassis, the SANY 62m concrete pump truck is built to handle demanding construction environments while reducing the need for additional concrete placing equipment.

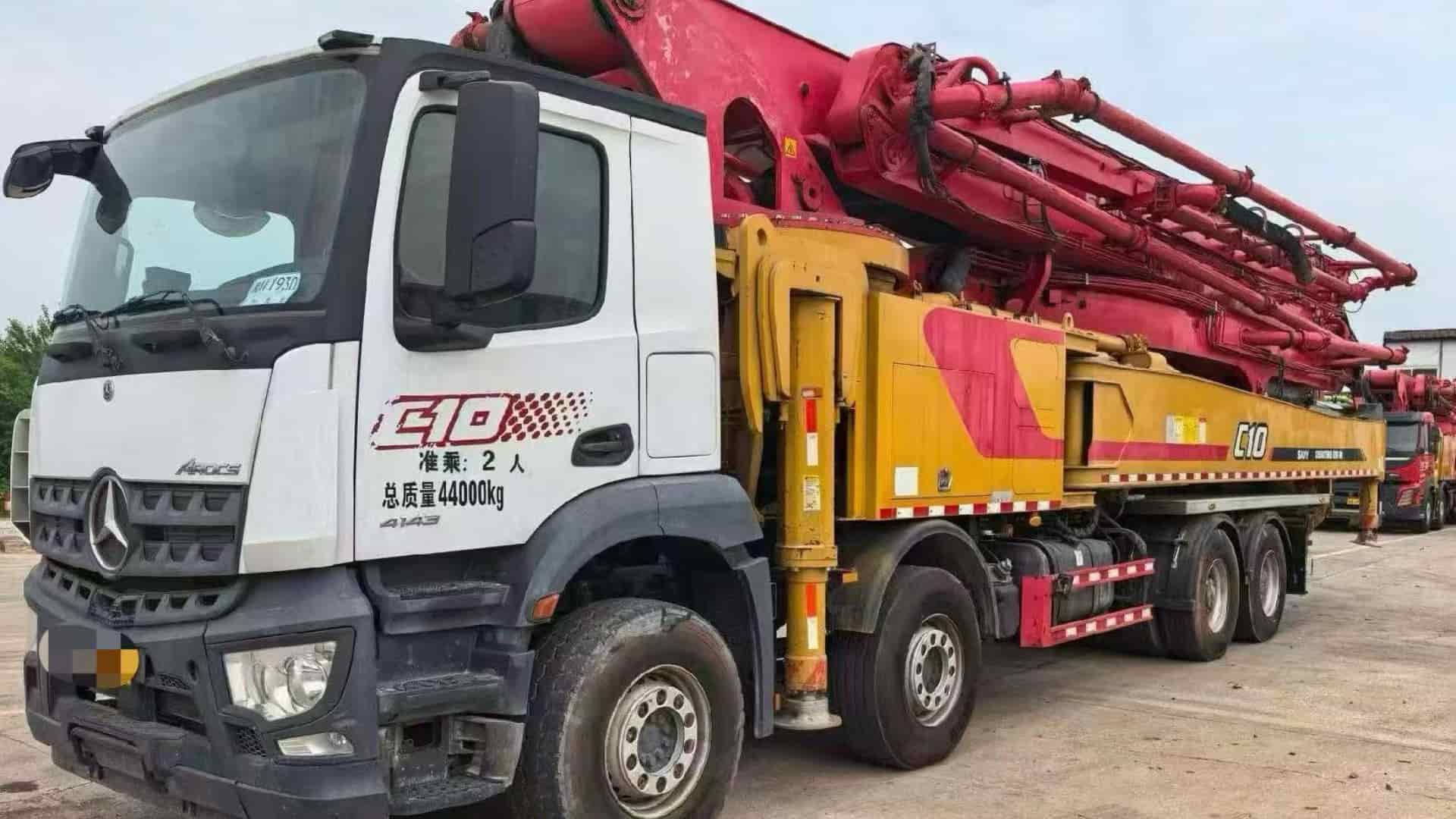

| Specification | Details |
| Brand | SANY |
| Model | SYM5442THBEB 620C-10A |
| Manufacture Date | 2020 |
| Chassis | Mercedes-Benz, Automatic Gearbox |
| Boom Sections | 6 sections |
| Boom Reach | 61.1 m (often referred to as “SANY 62M”) |
| Horizontal Reach | 55.9 m |
| Max Theoretical | 180 m³/h |
| Max Theoretical Pressure | 13 MPa |
| Emission Standard | Euro 5 |
| Engine | OM470LA.5-54 |
| Pump Hours | 1700 h |
| Total Output Volume | 120000 m³ |
| Kerb Weight | 43870kg |
| Gross Weight | 44000kg |
| Dimensions (L×W×H) | 14550mm X 2550mm X4000mm |
| Condition | Used, Good Condition, Export-Ready |
Specifications can differ between models and markets, so buyers should always request the exact factory specification sheet.
For reference, SANY’s current 62m-class models provide the following performance range:
SANY’s published product information confirms that its over-60m truck-mounted concrete pump category covers vertical reaches above 60m, output from 120–200 m³/h, and pressure from 8.3–12 MPa.
A 62m concrete pump truck is most suitable for projects where long reach and high concrete output are more important than compact dimensions.
High-rise construction is one of the most common applications.
The long boom allows concrete to be placed at elevated floors without requiring a separate placing boom for every stage of construction.
The SANY 62m pump truck can also be used for:
Its long horizontal reach can be particularly useful when the pump truck cannot be positioned directly beside the concrete placement area.
Large factories, power plants, steel plants, warehouses, and industrial foundations often require large-volume concrete pours.
A high-output truck-mounted pump can help contractors maintain a continuous concrete supply during these operations.
The approximately 62m vertical reach provides significantly more coverage than conventional 30m–40m boom pumps.
With theoretical pumping capacity reaching up to 200 m³/h on certain configurations, the machine is designed for large-volume concrete placement.
Concrete can be delivered directly to the placement point, reducing the need for manual transportation and additional concrete handling.
The articulated boom allows concrete placement around structures, obstacles, and difficult-access areas.
The combination of long reach and high pumping capacity makes the 62m class particularly suitable for high-rise buildings and major infrastructure projects.
SANY states that its truck-mounted concrete pump range is supported by spare-parts supply and rapid troubleshooting services, while its current product range also incorporates remote machine-management capabilities such as MachineLink+
For small construction projects, a 30m–40m concrete pump may offer better cost efficiency. A 62m pump truck becomes more attractive when long reach, high output, and reduced repositioning can directly improve project productivity.
The price of a SANY 62m concrete pump truck varies considerably depending on whether the machine is new or used.
Factors affecting the price include:
For used equipment, two machines with the same nominal 62m boom length can have very different values because of differences in working hours, maintenance history, and structural condition.
For this reason, buyers should compare total ownership cost, not only the initial purchase price.
The SANY 62m pump truck is designed for demanding concrete placement applications where reach and productivity are critical.
With approximately 61–62m of vertical reach, up to around 57.6m horizontal reach on representative configurations, and theoretical pumping output of up to 200 m³/h, the 62m class provides the reach and capacity required for many high-rise and large infrastructure projects.
Reach: ★★★★★
Pumping capacity: ★★★★★
Jobsite flexibility: ★★★★☆
Large-project productivity: ★★★★★
Maintenance requirements: ★★★★☆
Small-project suitability: ★★☆☆☆
If your project requires a 62m concrete boom pump, SANY’s 62m-class machines are worth considering alongside other major brands. The final buying decision should be based on the exact model, machine condition, local service support, spare-parts availability, and total operating cost.
Looking for a SANY 62m concrete pump truck for sale?
Tell us your required:
Our team can help you compare available 62m concrete pump trucks, specifications, configurations, shipping options, and estimated total purchase costs.
